WPE | Filter Housings, Slim Line
WPE | Filter Housings, Slim Line
In stock
Pickup available at Park Rynie
Usually ready in 24 hours
These filter housings are suitable for water and non-corrosive liquids. Talc-filled polypropylenes have improved rigidity, hardness, and heat resistence compared to the base resin.

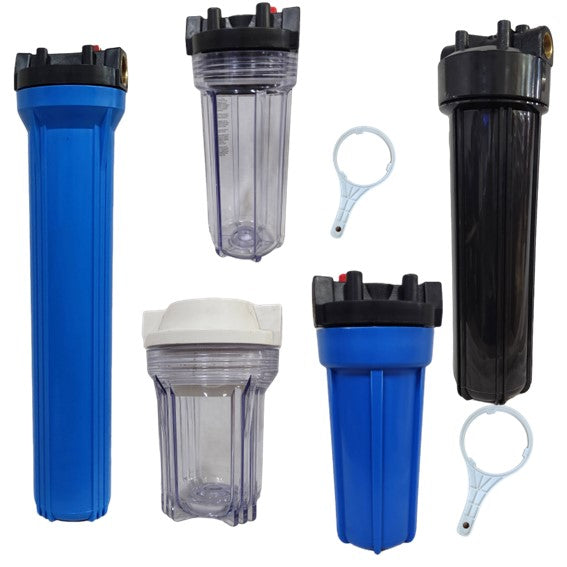

*Actual product image may vary based on product size
Guarantees
Guarantees
Store Refund Policy
Materials
Materials
Shipping
Shipping
Online | 2 - 7 days
Additional Information
Additional Information
• Talc-filled polypropylenes have improved rigidity, hardness, and heat resistance compared to the base resin. Polypropylene is highly resistant to corrosive materials, organic solvents, and degreasing agents as wells as electrolytic attack. Compared to low or high density polyethylene, polypropylene has a lower impact strength, but superior working temperatures and tensile strength.
• Head and body: Talc filled polypropylene.
• Must be protected against freezing and direct sunlight, operate up to 50°F and 8 bars.
• Clear bowl: Styrene Acrylonitrile (San)
• Clear bowls should not be cleaned with solvents like acetone
• Opaque bowl: Polypropylene
• Gasket: Nitrile , Buna-N
• Inlet and Outlets: 5 Inch - 1/4" BSP Threaded; 10 Inch - 1/4", 1/2", 3/4", 1" BSP Threaded; 20 Inch - 3/4", 1" BSP Threaded
• Maximum Flow Rate: 5 Inch - 11LPM; 10 Inch - 19LPM; 20 Inch - 38LPM
